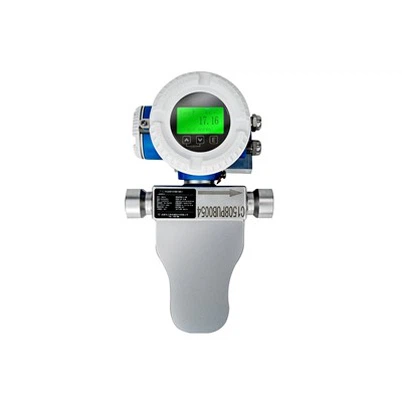

Slurry Mass Flowmeter
(1)Integrated design, small size, easy installation.
(2)Measurement independent of medium characteristics.
(3)Hygienic design in accordance with 3A certification.
(4)CIP/SIP cleaning available to ensure product quality.
(5)Robust housing (aluminium or stainless steel).
Description
coriolis flow meter density measurement
Straight tube type/T Series
(1)Integrated design, small size, easy installation.
(2)Measurement independent of medium characteristics.
(3)Hygienic design in accordance with 3A certification.
(4)CIP/SIP cleaning available to ensure product quality.
(5)Robust housing (aluminium or stainless steel).
As a high-precision flow measurement device based on the Coriolis effect, the Coriolis mass flow meter, with its characteristic of directly measuring mass flow, is widely used in numerous industrial fields such as petrochemicals, pharmaceuticals, food and beverage, and semiconductors. Its core functions are not only reflected in accurate metering but also integrate stability to adapt to complex working conditions and multi-parameter monitoring capabilities:
1.Direct measurement of mass flow, without being interfered by medium characteristics
2.Synchronous monitoring of multiple parameters to enhance process control
3.Adaptation to extreme working conditions to ensure stable operation
4.Low pressure loss and compact design to optimize system energy efficiency
5.Intelligent functions and convenient maintenance
|
Model |
Nominal diameter |
A |
B |
C |
D |
E |
|
CMASS08 |
1/4" |
382 |
207 |
73 |
50.8 |
172 |
|
CMASS15 |
1/2" |
382 |
207 |
73 |
50.8 |
172 |
|
CMASS20 |
3/4" |
483 |
209 |
73 |
50.8 |
172 |
|
CMASS25 |
1" |
483 |
209 |
73 |
50.8 |
172 |
|
CMASS40 |
1-1/2" |
764 |
258 |
φ124 |
φ106 |
172 |
|
CMASS50 |
2" |
764 |
258 |
φ124 |
φ106 |
172 |
|
Characteristic |
Description |
|
Nominal Diameter (DN) |
DN08, DN15, DN25, DN40, DN50 |
|
Certification: Transmitter & Sensor Assembly |
CCS Certification, CPA, Explosion proof certificate(ex) |
|
Power Supply |
24VDC/220VAC |
|
Output;Input1 |
Modbus/RS-485 |
|
Output;Input1 |
Pulse |
|
Output;Input1 |
4-20mA Current loop |
|
Display;Operate |
3-line backlight;Touch key control |
|
Protection grade |
IP67 |
|
Housing material |
304 stainless steel, ZL401 (Transmitter) |
|
Electrical connection |
Wire head M20x1.5 |
|
Measuring Tube Material;Wetted Parts Surface Finish |
316L (default), titanium/Ha C alloy/tantalum (optional); polishable. |
|
Process connection |
Thread |
|
Accuracy class |
0.15 level, 0.2 level, 0.5 level (default), 1.0 level |
|
Transmitter software |
CLS100 (default),optional CLS200,CLS300 |
|
>Operating language display |
Simplified Chinese, English, Russian |
|
>>Other certifications |
Explosion proof certificate, SIL, CCS, 3-A, EAC |
Compared with similar products, our Coriolis mass flowmeters have significant advantages: under extreme working conditions (high viscosity, multiphase flow, density fluctuation), the accuracy remains stable at ±0.1%, far exceeding the industry average of ±0.5%, and the maintenance cycle is tripled; Equipped with military-grade anti-interference design and gradient alloy coating, the anti-electromagnetic interference capability is improved by 40%, and the service life reaches 8 years (industry average is 3-5 years).
